What is OpenCv and use cases of OpenCv?

What is OpenCv?

OpenCV (Open Source Computer Vision Library) is a computer vision and machine learning open-source software library. It provides a set of tools and algorithms for image and video processing, computer vision, and machine learning tasks. OpenCV is widely used in both academia and industry for developing applications related to computer vision and image processing.

What is top use cases of OpenCv?

Top Use Cases of OpenCV:

1. Object Detection and Recognition:
   • OpenCV is commonly used for detecting and recognizing objects in images and videos. It can be applied to various domains, including surveillance, robotics, and autonomous vehicles.
2. Facial Recognition:
   • OpenCV’s facial recognition capabilities are used in applications such as face detection, facial landmark detection, and emotion recognition. It finds applications in security systems, user authentication, and human-computer interaction.
3. Image and Video Processing:
   • OpenCV provides a rich set of functions for image and video processing, including filtering, transformation, and manipulation. It is widely used for tasks like image enhancement, color correction, and video editing.
4. Gesture Recognition:
   • OpenCV is employed in developing systems that recognize and interpret human gestures. This is used in gaming, sign language recognition, and human-computer interaction.
5. Medical Image Analysis:
   • OpenCV is utilized in medical imaging applications for tasks such as image segmentation, tumor detection, and analyzing medical images like X-rays and MRIs.
6. Augmented Reality (AR):
   • OpenCV plays a crucial role in augmented reality applications, allowing developers to overlay virtual objects onto the real-world environment captured by cameras. This is used in gaming, navigation, and interactive experiences.
7. Robotics:
   • OpenCV is used in robotics for tasks such as object detection, navigation, and visual SLAM (Simultaneous Localization and Mapping). It helps robots recognize and understand their environment.
8. Machine Learning Integration:
   • OpenCV provides interfaces to integrate with machine learning frameworks, allowing developers to build and deploy computer vision models. This includes tasks like image classification, object detection, and image segmentation.
9. Lane Detection and Autonomous Vehicles:
   • In the field of autonomous vehicles, OpenCV is used for tasks like lane detection, object tracking, and obstacle recognition. It plays a crucial role in computer vision systems for self-driving cars.
10. Document Text Extraction (OCR):
    • OpenCV integrates with Optical Character Recognition (OCR) tools for extracting text from images and documents. This is used in document scanning, digitization, and text analysis.
11. Image Stitching:
    • OpenCV is employed for creating panoramic images by stitching together multiple images. This is used in photography, virtual tours, and mapping applications.
12. Biometrics:
    • OpenCV is used in biometric applications for tasks such as fingerprint recognition, iris recognition, and hand geometry recognition.
13. Human Pose Estimation:
    • OpenCV can estimate the poses of humans in images and videos. This is used in applications like sports analysis, fitness tracking, and animation.
14. Quality Inspection in Manufacturing:
    • OpenCV is applied in manufacturing for quality control and inspection. It can be used to identify defects, measure dimensions, and ensure the quality of products on production lines.
15. Remote Sensing:
    • OpenCV is used in remote sensing applications, such as analyzing satellite imagery and aerial photographs for tasks like land cover classification and environmental monitoring.

OpenCV’s versatility and extensive set of features make it a go-to library for a wide range of computer vision and image processing applications. Its open-source nature and active community contribute to its widespread adoption in various industries and research fields.

What are feature of OpenCv?

Features of OpenCV:

1. Image Processing:
   • OpenCV provides a comprehensive set of tools for image processing, including filtering, morphological operations, histogram analysis, and color space transformations.
2. Video Analysis:
   • OpenCV supports video analysis tasks, including video capture, motion analysis, background subtraction, and object tracking.
3. Object Detection and Recognition:
   • OpenCV includes pre-trained models and algorithms for object detection and recognition. It supports popular object detection frameworks like Haar cascades and deep learning-based approaches.
4. Feature Detection and Matching:
   • OpenCV offers algorithms for detecting and matching features in images, such as keypoint detection, feature extraction, and feature matching.
5. Facial Recognition:
   • OpenCV includes tools for facial detection, facial landmark detection, and facial recognition. It is widely used in applications like face authentication and emotion recognition.
6. Camera Calibration:
   • OpenCV provides functions for camera calibration, which is essential for correcting lens distortion and obtaining accurate measurements from images.
7. Image Stitching:
   • OpenCV supports image stitching to create panoramic images by combining multiple images. It includes algorithms for feature matching and image blending.
8. Machine Learning Integration:
   • OpenCV integrates with machine learning frameworks and provides support for building, training, and deploying machine learning models for computer vision tasks.
9. Optical Flow:
   • OpenCV includes algorithms for optical flow estimation, which is used for tracking the motion of objects in video sequences.
10. Deep Neural Networks (DNN):
    • OpenCV integrates with deep learning frameworks, allowing the use of pre-trained deep neural networks for tasks like image classification, object detection, and segmentation.
11. Image Segmentation:
    • OpenCV supports image segmentation techniques for partitioning an image into meaningful segments, which is useful for tasks like object recognition and analysis.
12. Pattern Recognition:
    • OpenCV includes tools for pattern recognition, enabling the identification of patterns and shapes in images.
13. Point Cloud Processing:
    • OpenCV provides functionality for processing and manipulating 3D point clouds, which is useful in applications like 3D reconstruction and computer-aided design.
14. Geometric Transformations:
    • OpenCV supports geometric transformations, including image rotation, scaling, translation, and perspective transformations.
15. Image and Video I/O:
    • OpenCV facilitates reading and writing images and videos in various formats. It supports different image and video codecs.

What is the workflow of OpenCv?

Workflow of OpenCV:

1. Installation:
   • Install OpenCV on the target platform using the appropriate package manager or by building from source. OpenCV favors multiple programming languages, including Python, C++, and Java.
2. Image/Video Capture:
   • Capture images or video frames using a camera or by reading from a file.
3. Image Processing:
   • Apply image processing operations such as filtering, color space transformations, and morphological operations to enhance or modify images.
4. Feature Detection and Matching:
   • Detect and match features in images using algorithms like SIFT, SURF, ORB, or keypoint matching.
5. Object Detection and Recognition:
   • Perform object detection and recognition using pre-trained models or custom-trained models. This can involve Haar cascades, deep learning-based models, or other techniques.
6. Machine Learning Integration:
   • Integrate machine learning models for tasks like image classification or object detection using OpenCV’s DNN module.
7. Geometric Transformations:
   • Apply geometric transformations to images, such as rotation, scaling, translation, and perspective transformations.
8. Optical Flow:
   • Use optical flow algorithms to track the motion of objects in video sequences.
9. Camera Calibration:
   • Calibrate the camera to correct lens distortion and obtain accurate measurements from images.
10. Image Stitching:
    • Perform image stitching to create panoramic images by combining multiple images.
11. Facial Recognition:
    • Use OpenCV’s facial recognition tools for tasks like face detection, facial landmark detection, and facial recognition.
12. Image Segmentation:
    • Apply image segmentation techniques to partition images into meaningful segments.
13. Pattern Recognition:
    • Use OpenCV’s tools for pattern recognition to identify and analyze patterns and shapes in images.
14. Point Cloud Processing:
    • Process and manipulate 3D point clouds for tasks like 3D reconstruction or point cloud analysis.
15. Visualization:
    • Visualize and display the results using OpenCV’s display functions. This can include displaying images, videos, or visualizing processed data.
16. Integration with Applications:
    • Integrate the results and processed data with other applications or systems as needed.

OpenCV’s workflow can be customized based on the specific requirements of the computer vision or image processing application being developed. The library provides a rich set of tools and algorithms, making it a versatile and widely-used resource in the field of computer vision.

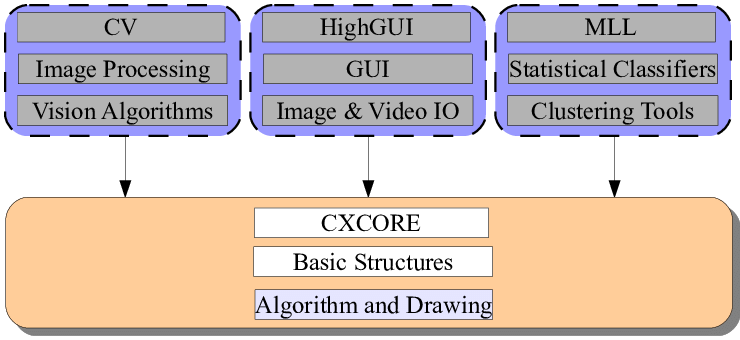

How OpenCv Works & Architecture?

OpenCV, the Open Source Computer Vision Library, is a powerful toolkit for image processing, video analysis, and real-time computer vision applications. Its architecture and functionality are designed for efficiency and flexibility, making it a popular choice for developers across various domains.

Following is a breakdown of how OpenCv works and its architecture:

Modules:

OpenCV is modular, meaning it’s divided into different modules that handle specific tasks like:

• Core: Provides fundamental data structures and algorithms for image and video processing.
• Imgproc: Handles image processing tasks like filtering, morphing, segmentation, and feature extraction.
• Highgui: Handles user interface and input/output operations.
• Calib3d: Deals with camera calibration and 3D reconstruction.
• Ml: Provides machine learning algorithms for object recognition, face detection, and more.

Data Structures:

OpenCV uses specific data structures for efficient processing:

• Mat: The fundamental data structure for images and videos, representing a multi-dimensional array of pixel values.
• Scalar: A one-dimensional array holding pixel values for color channels.
• Point: Represents a 2D point in an image.
• Rect: Defines a rectangular region of interest in an image.

Algorithms and Functions:

OpenCV offers a vast library of algorithms and functions for various tasks:

• Image processing: Filtering, smoothing, thresholding, morphological operations, etc.
• Feature detection and extraction: Edges, corners, blobs, textures, etc.
• Object recognition and tracking: Identifying objects in images and videos.
• Machine learning: Training and applying machine learning models for computer vision tasks.

Architecture:

OpenCV is highly optimized for performance and portability. Its architecture relies on:

• C++: Core functionalities are implemented in C++ for efficiency.
• APIs: Provides APIs in various languages like Python, Java, and C# for easy access.
• Hardware acceleration: Integrates with hardware accelerators like GPUs for faster processing.
• Open-source community: Continuously updated and improved by a large community of developers.

Benefits of OpenCv:

• Open-source and free to use.
• Modular and flexible architecture.
• Wide range of functionalities.
• Highly optimized for performance.
• Cross-platform compatibility and hardware acceleration.
• Large and active community.

OpenCv’s modular architecture, efficient data structures, and diverse algorithms make it a powerful and versatile tool for computer vision applications. Its open-source nature and active community contribute to its continuous improvement and widespread adoption.

How to Install and Configure OpenCv?

Following is a comprehensive guide to installing and configuring OpenCV on different platforms:

Prerequisites:

• Development environment: Choose an IDE or code editor like Visual Studio Code, PyCharm, or CLion.
• Programming language: Select your preferred language (Python is widely used for OpenCV).
• Package manager:
  • Python: Ensure you have pip installed.
  • C++: Use a build system like CMake.

Installation:

1. Python:

• Use pip: pip install opencv-python
• Additional modules for extra features: pip install opencv-contrib-python

2. C++:

• Download source code from OpenCV’s website.
• Unzip and build using CMake:
  • Create a build directory: mkdir build
  • Navigate to it: cd build
  • Run CMake: cmake ../opencv
  • Build: make -j8 (adjust -j based on your CPU cores)
  • Install: sudo make install

3. Other languages:

• Refer to OpenCV’s documentation for specific instructions.

Configuration:

1. Verify installation:

• Python: import cv2; print(cv2.__version__)
• C++: Compile a simple OpenCV program.

2. Environment variables (C++ only):

• Set OpenCV_DIR to the installation directory (e.g., C:\opencv\build).
• Add OpenCV libraries to your project’s linker settings.

3. IDE setup (optional):

• Configure your IDE to recognize OpenCV headers and libraries.

Important Notes:

• Hardware acceleration: Enable GPU support for faster processing (refer to OpenCV’s documentation).
• Contrib modules: Install opencv-contrib-python for extra features (e.g., SIFT, SURF).
• Virtual environments: Isolate OpenCV installations for different projects (recommended for Python).
• Troubleshooting: Consult OpenCV’s documentation and community forums for assistance.

Fundamental Tutorials of OpenCv: Getting started Step by Step

Following is a step-by-step guide to basic OpenCV tasks in Python, incorporating images for clarity:

1. Loading and Displaying an Image:

• Code:

Python

   import cv2

   # Load an image
   img = cv2.imread('image.jpg')

   # Display the image
   cv2.imshow('Image', img)
   cv2.waitKey(0)  # Wait for a key press
   cv2.destroyAllWindows()

• Image:

2. Accessing and Manipulating Pixels:

• Accessing pixels:

Python

   # Access a pixel value (e.g., blue channel of pixel at (100, 50))
   blue_value = img[50, 100, 0]

• Modifying pixels:

Python

   # Change all pixels to red
  img[:, :, 0] = 255  # Red channel
  img[:, :, 1] = 0    # Green channel
  img[:, :, 2] = 0    # Blue channel

3. Resizing and Cropping Images:

• Resizing:

Python

   # Resize to half the original size
   resized_img = cv2.resize(img, None, fx=0.5, fy=0.5)

• Cropping:

Python

   # Crop a 200x200 region starting at (100, 50)
   cropped_img = img[50:250, 100:300]

4. Converting Colorspaces:

• Grayscale:

Python

   gray_img = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)

• Other colorspaces:

Python

   # Convert to HSV colorspace
   hsv_img = cv2.cvtColor(img, cv2.COLOR_BGR2HSV)

5. Drawing Shapes and Text:

• Drawing a line:

Python

   cv2.line(img, (0, 0), (100, 50), (0, 255, 0), 2)  # Green line

• Drawing a rectangle:

Python

   cv2.rectangle(img, (10, 10), (50, 50), (255, 0, 0), 3)  # Blue rectangle

• Adding text:

Python

   cv2.putText(img, 'Hello, OpenCV!', (10, 20), cv2.FONT_HERSHEY_SIMPLEX, 1, (0, 0,
255), 2)

6. Saving Images:

Python

   cv2.imwrite('output.jpg', img)

This is just a brief introduction. OpenCV offers a vast array of advanced features for image processing, video analysis, and computer vision tasks.
