Maven Fundamentals


THE BASICS

By scmGalaxy.com

About Me

DevOps@RajeshKumar.XYZ

Course Overview

  • Introduction to Maven
    • New to Maven
    • Ant Veteran
  • Key concepts of Maven
    • Convention over configuration
  • Day-to-day coding
  • Integration
  • Maven can be very complex

Course Overview

  • Topics Covered
    • Introduction to Maven
    • Structure
    • Dependencies
    • Repositories
    • Plugins
    • IDE Integration

Introduction to Maven

Outline

  • High level overview
  • Ant VS Maven VS IDE
  • Installation Best Practices
  • Hello World Application
  • Summary

Maven High Level Overview

What is Maven

  • At its simplest, Maven is a build tool
    • It always produces one artifact (component)
    • It helps us manage dependencies
  • It can also be used as a project management tool
    • It handles versioning and releases
    • Describes what your project is doing or what it produces
    • Can easily produce Javadocs as well as other site information

Who owns it

  • Maven is managed by the Apache Software Foundation
  • Maven sites are built with Maven
  • Open Source

Why do you want to use it

  • Repeatable builds
    • We can recreate our build for any environment
  • Transitive dependencies
    • Downloading a dependency with also pull other items it needs
  • Contains everything it needs for your environment
  • Works with a local repo
  • Works with your IDE, but also standalone
  • The preferred choice for working with build tools like Jenkins or Cruise Control

Ant VS Maven

Ant

  • Ant was developed to be a replacement for a build tool called Make
  • Designed to be cross platform
  • Built on top of Java and XML
  • Very procedural

Ant

  • Ant really isn’t a build tool as much as it is a scripting tool
  • You have to explicitly do everything in Ant
  •
    <target name="clean" description="clean up”>
    <!-- Delete the ${build} and ${dist) directory trees -->
    <delete dir="${build}"/>
    </target>

  • We have to define everything that we want to do
    • clean, clear, cleanup, etc…
  • A lot of tribal knowledge, nothing carries over

Maven

  • Maven is a full fledged build tool
  • A lot of implicit functionality
  • Consistency across projects
  • Also capable to achieve inheritance in projects
  • Transitive dependencies (can be achieved using Ivy with Ant though)
  • Built around versioning

Pros and Cons

  • Maven can be a black box
  • Steeper learning curve
  • Convention over configuration
  • Better IDE integration
  • Let overheard through use of repos
  • Different mindset, steepest learning curve is not making Maven act lik Ant
  • You can trace through Ant files fairly easily
  • Quicker to learn, but very copy-paste intensive
  • Larger project size in SCM, artifacts stored with project

Ant build.xml


  <project>
	<target name="clean">
		<delete dir="build"/>
	</target>

	<target name="compile">
		<mkdir dir="build/classes"/>
		<javac srcdir="src" destdir="build/closses"/>
	</target>

	<target name="jar">
	       <mkdir dir="build/jor"/>
		<jar destfile="buiid/jor/HelloWorld.jar" bosedir="build/classes">
			<manifest>
				<attribute name="Man-Class" value="aato.HelloWorld”/>
			</manifest>
		</jar>
	</target>

	<target name="run">
	    <java jar="build/jar/Helloorld.jor" fork="true"/>
	</target>
  </project>


Maven pom.xml


<project xmlns="http://maven.apache.org/POM(/4.0.0)”
		xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
		xsi:schemalocation="http://maven.apache.org/POM(/4.0.0 http://Maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>com.mycompany</groupId>
	<artifactId>HelloWorld</artifactId>
	<version>0.0.1-SNAPSHOT</version>
</project>


Summary

  • Ant is very declarative
  • Maven follows a convention over configuration model
  • Ant is maybe easier to learn, but it really is only beneficial as a scripting tool
  • Maven is really centered around managing your entire project’s lifecycle

Summary

What we covered

  • What is Maven
  • How is Maven different from other tools
    • Its not just a scripting tool
  • Where to get it and how to install it
  • A Hello World application

What is next

  • Structure
  • Dependencies
  • Repositories
  • Plugins
  • Eclipse Integration

Structure

Outline

  • Folder Structure
  • POM File Basics
  • Basic Commands and Goals
  • Dependencies
  • Local Repo

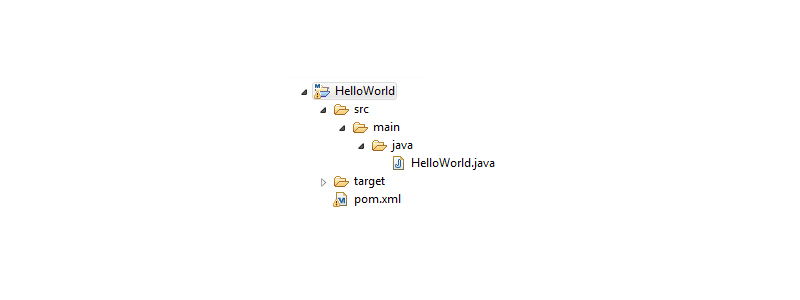

src/main/what?

  • src/main/java
  • target
  • pom.xml

src main what for maven

src/main/java

  • Where we store our Java code
    • The beginning of our package declaration
      • com.yourcompanyname.division
  • What about other languages
    • src/main/groovy
  • What about testing
    • src/test/java

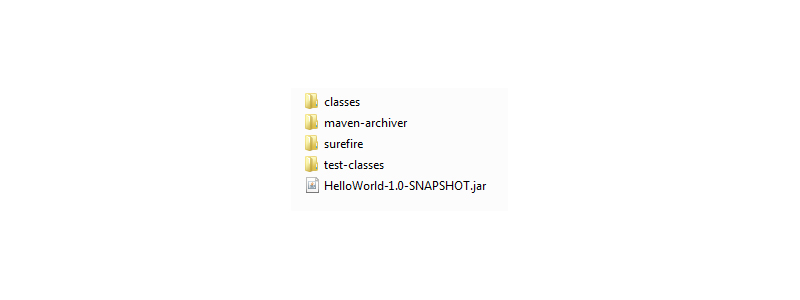

target

  • Where everything gets compiled to
  • Also where tests get ran from
  • Contents in this directory get packaged into a jar, war, ear, etc…

target for maven

pom.xml


<project xmlns="http://maven.apache.org/POM(/4.0.0)”
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemalocation="http://maven.apache.org/POM(/4.0.0
http://Maven.apache.org/xsd/maven-4.0.0.xsd">

	<groupId>com.pluralsight</groupId>
	<artifactId>HelloWorld</artifactId>
	<version>1.0-SNAPSHOT</version>
	<modelVersion>4.0.0-SNAPSHOT</modelVersion>
	<packaging>jar</packaging>

</project>


pom.xml

  • Can be divided into 4 basic parts:
    • Project Information
      • groupId
      • artifactId
      • version
      • packaging
    • Dependencies
      • Direct dependencies used in our application
    • Build
      • Plugins
      • Directory Structure
    • Repositories
      • Where we download the artifacts from

Dependencies

  • What we want to use in our application
  • Dependencies are imported by their naming convention
    • Often considered the most confusing part of Maven
  • We have to know the groupId, artifactId, and the version of what we are looking for
  • Added to a dependencies section to our pom file

Dependencies

  • Just list the dependency that we want
    • Transitive dependencies will be pulled in by Maven
  • Need at a minimum 3 things:
    • groupId
    • artifactId
    • version


  <dependencies>
        <dependency>
	        <groupId>commons-lang</groupId>
		<artifactId>commons-lang</artifactId>
		<version>2.1</version>
	</dependency>
  </dependencies>


pom.xml with our new dependency


  <groupId>com.pluralsight</groupId>
  <artifactId>HelloWorld</artifactId>
  <version>1.0-SNAPSHOT</version>
  <modelVersion>4.0.0</modelVersion>
  <packaging>jar</packaging>

  <dependencies>
        <dependency>
	        <groupId>commons-lang</groupId>
		<artifactId>commons-lang</artifactId>
		<version>2.1</version>
	</dependency>
  </dependencies>

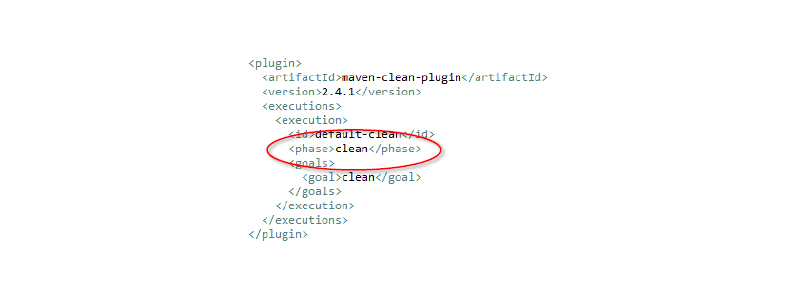

Goals

  • clean
    • Deletes the target directory and any generated resources
  • compile
    • Compiles all source code, generates any files, copies resources to our classes directory
  • package
    • Runs the compile command first, runs any tests, packages the app based off of its packaging type
  • install
    • Runs the package command and then installs it in your local repo
  • deploy
    • Runs the install command and then deploys it to a corporate repo
    • Often confused with deploying to a web server

Local Repo

  • Where Maven stores everything it downloads
    • Installs in your home directory\.m2
      • C:\Users\<yourusername>\.m2\repository
  • Stores artifacts using the information that you provided for artifactId, groupId, and version
    • C:\Users\<yourusername>\.m2\repository\commons-lang\commons-lang\2.1\commons-lang-2.1.jar
  • Avoids duplication by copying it in every project and storing it in your SCM

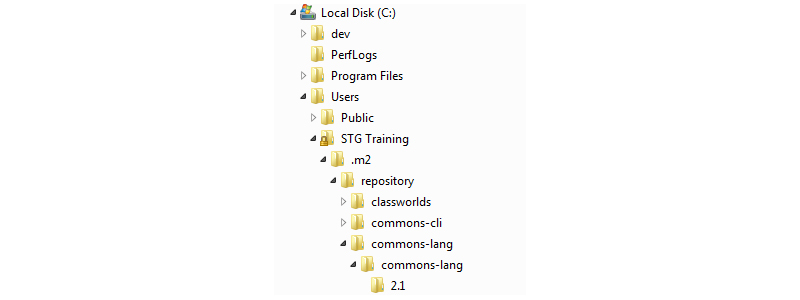

Local Repo


local repo for maven

Defaults

  • These are all the defaults that Maven has, but how do we override them?
    • The build section!
    • Let’s Demo the options for structure changes.

Summary

  • Source code goes in src/main/java
  • Everything is compiled to our target directory
  • The pom has 4 major parts
  • Introduction of goals
    • You can chain goals
  • Basic example of a dependency
  • Where things are stored in your local repo
  • How we can override the default behavior

Dependencies

Outline

  • Versions
  • Types
  • Transitive Dependencies
  • Scopes

Dependency

  • Just list the dependency that we want
    • Transitive dependencies will be pulled in by Maven
  • Need at a minimum 3 things:
    • groupId
    • artifactId
    • version

  <dependencies>
        <dependency>
	        <groupId>commons-lang</groupId>
		<artifactId>commons-lang</artifactId>
		<version>2.1</version>
	</dependency>
  </dependencies>


Versions

  • Development starts off as a SNAPSHOT
    • myapp-1.0-SNAPSHOT.jar
    • Changes always downloaded
    • Saves you from rereleasing versions for development
    • Never deploy to production with a SNAPSHOT
  • A release doesn’t have a specific naming convention
    • myapp-1.0.jar
    • myapp-1.0.1.jar
  • Industry common terms, but don’t affect maven
    • myapp-1.0-M1.jar (milestone release)
    • myapp-1.0-RC1.jar (release candidate)
    • myapp-1.0-RELEASE.jar (release)
    • myapp-1.0-Final.jar (release)

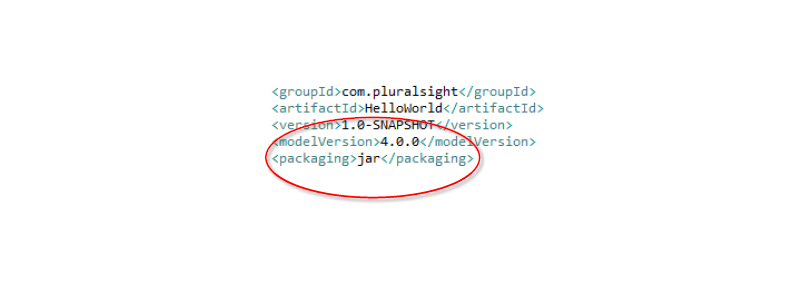

Types

  • Current core packaging types are:
    • pom, jar, maven-plugin, ejb, war, ear, rar, par
    • The default packaging type is jar
  • The type of pom is referred to as a dependency pom
    • Downloads dependencies from that pom

type of dependency maven

Transitive Dependencies

  • The main reason people begin using maven
  • If we add a dependency:
  •
        <dependency>
    	   <groupId>org.hibernate</groupId>
    	   <artifactId>hibernate-core</artifactId>
    	   <version>4.1.6.Final</version>
    	   </scope>compile</scope>
        </dependency>

  • If we add a dependency it downloads it’s transitive dependencies:

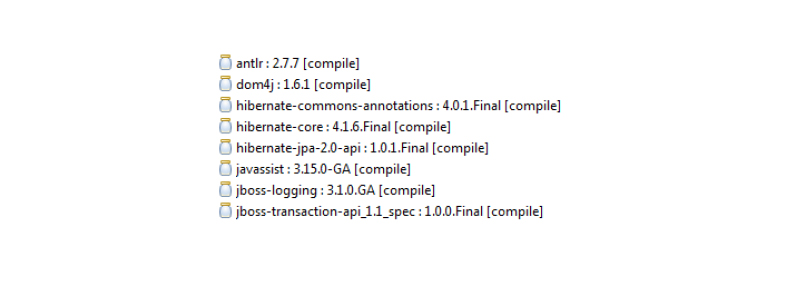

Transitive Dependencies


transitive dependencies maven

Scopes

  • There are 6 scopes available for dependencies:
    • compile – default scope, artifacts available everywhere
    • provided – like compile, means that the artifact is going to be provided where it is deployed
      • servlet-api.jar
      • xml-apis
      • Available in all phases, but not included in final artifact
    • runtime – not needed for compilation, but needed for execution
      • Not available for compilation, but included in all other phases
      • Not included in final artifact
    • test – only available for the test compilation and execution phase
    • system – similar to provided, you specify a path to the jar on your file system
      • Very brittle and defeats the purpose of maven, don’t use!
  • import – advanced topic, deals with dependencyManagement sections

Demo

  • Let’s look at what the pom.xml will look like when we:
    • Add a dependency
    • Reference transitive dependencies
    • Use scopes

Summary

  • Version numbers are up to your corporate strategy
    • SNAPSHOT has a unique meaning
  • Supported types and what they mean to your application
  • Transitive dependencies and how they are downloaded
  • Scopes allow us to compile or test our code, but not include artifacts that shouldn’t be in the packaged code

Repositories

Outline

  • Dependency Repo
  • Plugin Repo

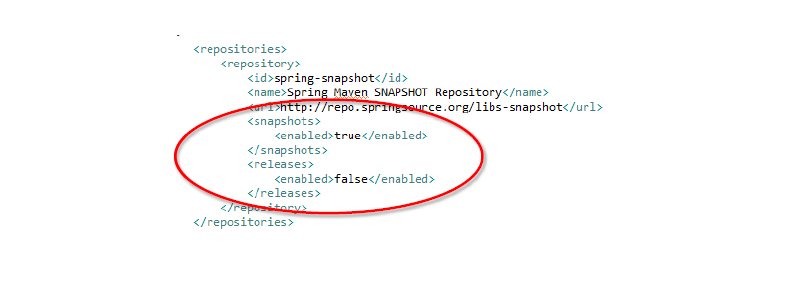

  • Releases/Snapshots

Local Repo

  • Where Maven stores everything it downloads
    • Installs in your home directory\.m2
      • C:\Users\<yourusername>\.m2\repository
  • Stores artifacts using the information that you provided for artifactId, groupId, and version
    • C:\Users\<yourusername>\.m2\repository\commons-lang\commons-lang\2.1\commons-lang-2.1.jar
  • Avoids duplication by copying it in every project and storing it in your SCM

Local Repo


local repo maven

Repositories

  • Simply just a http accessible location that you download files from
  • Super pom.xml
    • Default with the Maven installation
  • Default location
  • Multiple repositories allowed
  • Corporate Repository
    • Nexus (this is what the default repo is built on)
    • Artifactory

Dependency Repository

  • Where we download all of our dependencies from
    • Can contain just releases and/or snapshots
    • Not uncommon to have them in separate repositories
  • How do we specify our own repository

Dependency Repository


<repositories>
	<repository>
		<id>spring-snapshot</id>
		<name>Spring Maven SNAPSHOT Repository</naine>
		<url>http://repo.springsource.org/libs-snapshot</url>
		<snapshots>
		   <enabled>true</enabled>
		</snapshots>
		<releases>
		  <enabled>false</enabled>
		</releases>
	</repository>
</repositories>


Plugin Repository

  • Identical to Dependency Repositories, just deals with Plugins
  • Will only look for Plugins, by design usually a separate repository

<pluginRepositories>
	<pluginRepository>
		<id>acme corp</id>
		<name>Acme Internal Corporate Repository</name>
		<url>http://acmecorp.com/plugins</url>
		<snapshots>
		  <enabled>true</enab1ed>
		</snapshots>
		<releases>
		  <enabled>true</enabled>
		</releases>
	</pluginRepository>
</pluginRepositories>


Releases / Snapshots

  • Snapshots and releases can come from the same repo
  • Why would projects not upload everything to the central repo
    • Snapshots
    • Milestones
    • Release Candidate
    • Release policies

releases or snapshots maven fundamentals

Summary

  • Dependency repositories and Plugin repositories can be separate or the same repository
  • Projects will often not upload their SNAPSHOT code up to the central repo even though their release project is hosted there
  • Plugins are usually in the same repo as dependencies
  • Companies should use a corporate repository internally to help lighten the load on the central repo

Plugins

Outline

  • Goals
  • Phases
  • Compiler plugin
  • Jar plugin
  • Sources plugin
  • Javadoc plugin

Goals

  • The default goals are plugins configured in the maven install
    • clean, compile, test, package, install, deploy
  • Super pom has these goals defined in it, which are added to your effective pom:
  • goals maven fundamentals
  • Goals are tied to a phase

Phases

  • validate
    • Validate the project is correct and all necessary information is available
  • compile
    • Compile the source code of the project
  • test
    • Test the compiled source code
  • package
    • Packages the code in its defined package, such as a JAR

Phases

  • integration-test
    • Deploy and run integration tests
  • verify
    • Run checks against package to verify integrity
  • install
    • Install the package in our local repo
  • deploy
    • Copy final package to a remote repository

Compiler Plugin

  • Used to compile code and test code
  • http://maven.apache.org/plugins/maven-compiler-plugin/index.html
  • Invokes Javac, but with the classpath set from the dependencies
  • Defaults to Java 1.5 regardless of what JDK is installed
  • Configuration section allows customization
    • clean, compile, test, package, install, deploy
    • Fork
    • Memory
    • Source/target

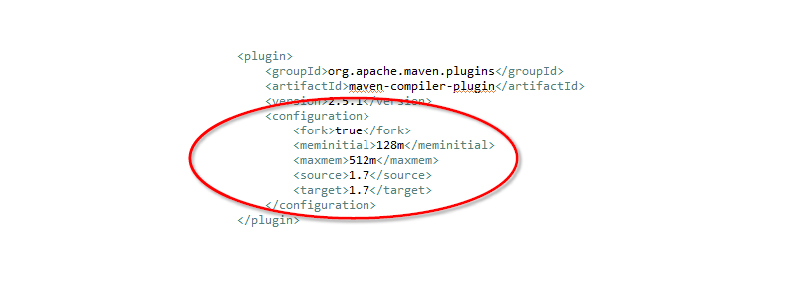

Compiler Plugin


compiler plugin maven fundamentals

Jar Plugin

  • Used to package code into a jar
  • http://maven.apache.org/plugins/maven-jar-plugin/index.html
  • Tied to the package phase
  • Configuration section allows customization
    • Includes/Excludes
    • Manifest

Jar Plugin


  <build>
	<plugins>
	  <plugin>
		<groupId>org.apache.maven.plugins</groupId>
		<artifactId>mavenc-jar-plugin-plugin</artifactId>
		<version >2.4</version>
		<configuration>
		  <useDefaultManifestFile>true</useDefaultManifestFile>
		</configuration>
	  </plugin>
	</plugins>
  </build>


Source Plugin

  • Used to attach source code to a jar
  • http://maven.apache.org/plugins/maven-source-plugin/index.html
  • Tied to the package phase
    • Often overridden to a later phase

Source Plugin


  <plugin>
	<groupId >org.apache.maven.plugins</groupId>
	<artifactId>maven-source-plugin</artifactId>
	<version>2.2.1</version>
	<executions>
	  <execution>
		<id>attach-sources</id)
		<phase>verify</phase>
		<goals>
		  <goal>jar</goal>
		</goals>
	  </execution>
	</executions>
 </plugin>


Javadoc Plugin

  • Used to attach Javadocs to a jar
  • http://maven.apache.org/plugins/maven-javadoc-plugin/index.html
  • Tied to the package phase
    • Often overridden to a later phase
  • Usually just use the defaults, but many customization options for Javadoc format

Javadoc Plugin


  <plugin>
	<groupId >org.apache.maven.plugins</groupId>
	<artifactId>maven-javadoc-plugin</artifactId>
	<version>2.9</version>
	<executions>
	  <execution>
		<id>attach-javadocs</id)
		<phase>verify</phase>
		<goals>
		  <goal>jar</goal>
		</goals>
	  </execution>
	</executions>
 </plugin>


Summary

  • Goals are really just configured plugins in your application
  • Plugins are tied to one of the defined phases, but can usually be overridden.
  • The compile plugin is already defined for you, but is often changed to use a specific version of Java.
  • The jar plugin is one of the default plugins and can be configured to produce artifacts to specific needs.
  • Source and Javadocs can easily be generated to be installed in your corporate repository for use by other developers.

Eclipse/Spring STS Integration

Outline

  • Installing Eclipse/Spring STS
  • Importing Maven Projects
  • Pom viewer
  • Dependency Overview
  • Adding a dependency
  • Dependency Heirarchy
  • Effective Pom

Installation

  • Eclipse/Spring STS doesn’t use the registry
  • Java and Maven installed the same regardless of using an IDE
  • Some IDEs do include a bundled version of Maven
  • http://www.springsource.org/downloads/sts-ggts

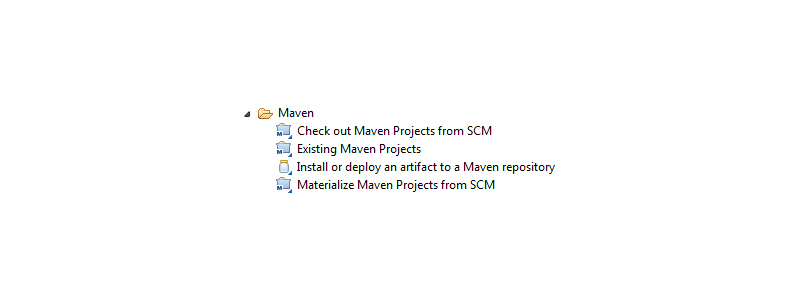

Importing Maven Projects

  • Modern IDEs have Maven integration built into them
  • Maven integration will allow us to execute default maven goals within our IDE
  • IDE configuration and Classpath will be set from Maven
  • Right Click in the Package Explorer > Import > Maven > Existing Maven Projects
importing maven projects

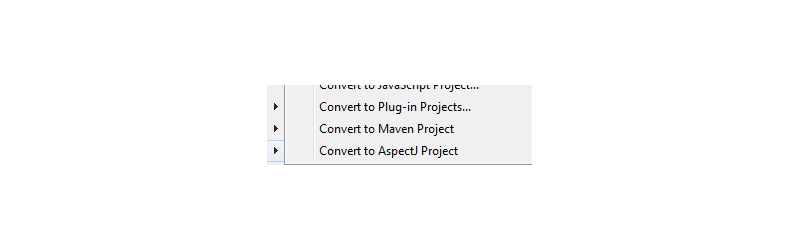

Converting Existing Projects

  • If you have a pom.xml file, you can convert the project to a Maven project
  • Right click on the project containing the pom.xml file > Configure > Convert to Maven Project
  • converting existing projects maven
  • Once converted the project will set the classpath and automatically build the project

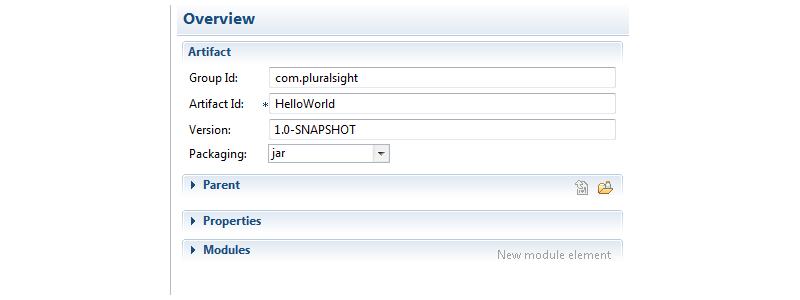

Pom Viewer

  • Default view when you open the pom file
  • Pom overview shows the high level elements of your project
  • Changes made here are directly changing the source
pom viewer maven

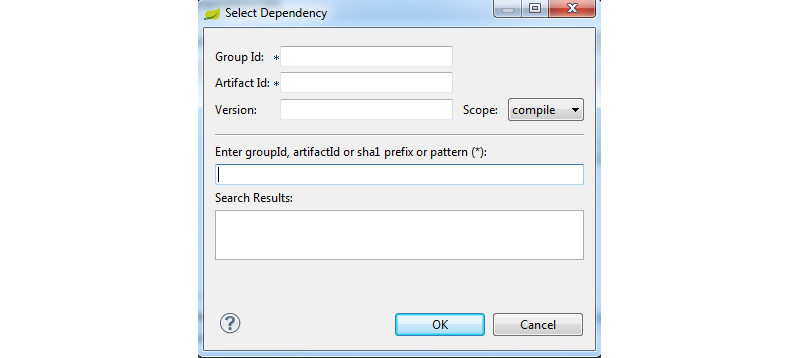

Dependencies

  • Shows which dependencies we have installed and allows us to manipulate dependencies too
  • Dependency Management (advanced topic) is also displayed
  • The add screen has searching capability
dependencies maven

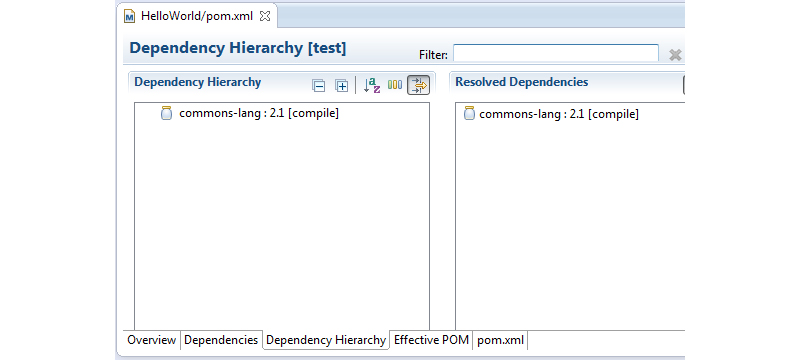

Dependency Heirarchy

  • Displays the complete dependency tree, including transitive dependencies as well overridden dependencies
  • Scope of the resource is also displayed
dependency heirarchy maven

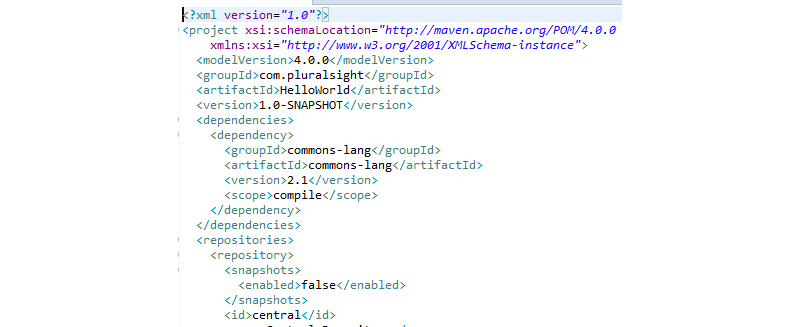

Effective Pom

  • The complete pom with everything inherited from the project pom, if we have a parent pom, and the default super pom
  • More of a debugging tool to see what the pom is doing
effective pom maven

Summary

  • Eclipse/STS installation is really unzipping
  • Existing projects can be imported easily and converting projects can be easily as well
  • Adding dependencies inside the IDE can be easier using the searching tools
  • Solving dependency resolution errors is more convenient in the IDE
  • Configuring your IDE is also more convenient with Maven

Questions?

questions

Thanks for You
